序號 Numbers |
技術參數 | 單位 Unit |

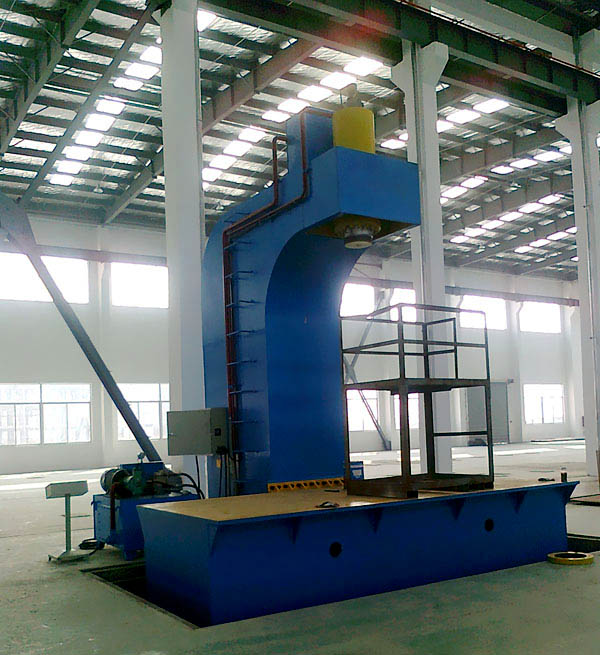

Y41係列單柱校正壓裝液壓機 | |||||||||
YFQ41-10 | YFQ41-16 | YFQ41-25 | YFQ41-40 | YFQ41-63 | YFQ41-100 | YFQ41-160 | YFQ41-200 | YFQ41-315 | ||||
1 | 公稱力 Rated pressure |
KN | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 3150 | |
2 | 液體工作壓力 Max.working hydraul pressure |
Mpa | 12 | 15 | 16 | 25 | 25 | 25 | 25 | 25 | 25 | |
3 | 滑塊距工作台麵距離 Max.distance between slide and surface of table |
校正 Press and put |
mm | 350 | 450 | 430 | 500 | 650 | 600 | 600 | 700 | 900 |
壓裝 Correct |
mm | 400 | 500 | 630 | 650 | 750 | 800 | 900 | 900 | 1250 | ||
4 | 滑塊行程 Max.stoke of slide |
mm | 250 | 350 |
400 | 400 | 500 | 500 | 600 | 700 | 700 | |
5 | 滑塊下行速度 Max.down speed of slide |
mm/s | 40 | 70 | 80 | 60 | 80 | 80 | 70 | 80 | 90 | |
6 | 滑塊回程速度 Max.return speed of slide |
mm/s | 50 | 70 | 75 | 70 | 70 | 50 | 62 | 60 | 68 | |
7 | 工作速度 Working speed |
mm/s | 12 | 15 | 15 | 15 | 15 | 12 | 10 | 10 | 6-8 | |
8 | 喉深 Throat depth |
mm | 175 | 200 | 320 | 320 | 320 | 400 | 420 | 450 | 450 | |
9 | 工作台有效尺寸 Effecgtive area of table |
工作台距地麵高度 Effecgtive Height |
mm | 700 | 710 | 710 | 710 | 800 | 800 | 900 | 900 | 1400 |
長寬 Length×Width |
mm | 300×350 | 500×450 | 570×580 | 700×570 | 710×600 | 800×700 | 900×800 | 900×900 | 1500×1500 | ||
10 | 機器外形尺寸 Overall dimensions of machine |
左右 L-R |
mm | ≈655 | 735 | 755 | 1250 | 1600 | 2000 | 2000 | 1100 | 1500 |
前後 F-B |
mm | ≈1160 | 1355 | 1485 | ≥1660 | 1750 | 2000 | 2000 | 2000 | 3000 | ||
高度 Height |
mm | ≈2100 | 2160 | 2330 | ≥2377 | 2500 | 2650 | 2954 | 3350 | 3800 | ||
11 | 電機功率 Motor power |
KW | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 15 | 18.5 |
